Huis > producten > Zanddredger > Small Jet Suction Sand Dredger Customized

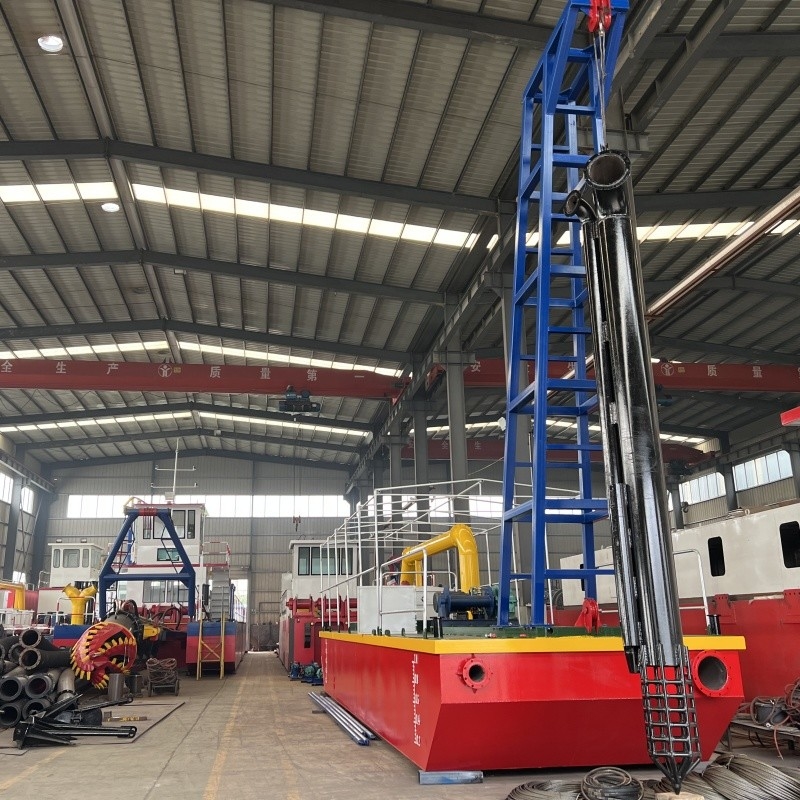

Small Jet Suction Sand Dredger Customized

Name: Small Jet Suction Sand Dredger Customized
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: ys-6 inch
Price: 56000 USD
Availability: InStock

Productdetails

Place of Origin: china

Merknaam: yongsheng

Modelnummer: ys-6 inch

Betaling & het Verschepen Termijnen

Minimum Order Quantity: 1

Prijs: 56000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Krijg Beste Prijs

Productdetails

Productomschrijving

Productdetails

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Small Jet Suction Sand Dredger, Customized Sand Dredger, Small Jet Sand Dredger


Customized:	customized	Voorwaarde:	Nieuw
Warranty:	1 year	Waterstroom:	250 M3/h
Solid Capacity:	40-50 Cbm/H	Max.Dredging Depth 45°:	6m
Afstand van ontlading:	500 meter	size:	10M3.8M1.0M
Main Engine:	120kw	consumption:	18L/H
Application:	sand suction	Work site:	river lake sea canal

Customized:	customized
Voorwaarde:	Nieuw
Warranty:	1 year
Waterstroom:	250 M3/h
Solid Capacity:	40-50 Cbm/H
Max.Dredging Depth 45°:	6m
Afstand van ontlading:	500 meter
size:	10M3.8M1.0M
Main Engine:	120kw
consumption:	18L/H
Application:	sand suction
Work site:	river lake sea canal

Productomschrijving

small jet suction sand dredger can be customized

1.Brief Introduction: Jet suction sand dredger is a very common kind of sand suction dredger, many

rivers are using this dredger construction, equipment work, suction halter through the winch down to the

bottom of the sand layer above, at the same time, the diesel engine drive the pump work, the water in the

river through the high-pressure pump, high-speed jet to the bottom sand layer, the sand is affected by the

 impact of water, began to diffuse with water doping mixed. Under the action of the sand pump, the mixed

doped sand enters the equipment through the suction cage, passes the action of the pump in the cabin,

and then the sand is discharged to the shore through the conveying pipe.

Product Paramenters:

Model	Soild capacity	Water flow	Dredging depth	Discharge distance	Main engine	Auxiliary engine	Total consumption	size(m)
6inch	40-50 m3/h	250 m3/h	6M	500M	120 KW		18L/H	103.81.6
8inch	80-100 m3/h	500 m3/h	8M	500M	176 KW	60KW	40L/H	144.51.2
10inch	150-180 m3/h	900 m3/h	10M	800M	294 KW	88KW	60L/H	1751.2
12inch	200-250 m3/h	1400 m3/h	10M	1000M	456 KW	110KW	80L/H	2061.5
14inch	300-400 m3/h	2000 m3/h	12M	1500M	735 KW	120KW	120L/H	246.61.6
16inch	400-500 m3/h	2600 m3/h	14M	1500M	882 KW	258KW	150L/H	247.21.8
18inch	500-600 m3/h	3000 m3/h	14M	1500M	1103 KW	456KW	220L/H	247.62.0
20inch	600-700 m3/h	3800 m3/h	14M	1500M	1250 KW	456KW	240L/H	267.62.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added. The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

Shandong Yongsheng Dredging Machinery Co.,Ltd is specializing in the production of dredging equipment,

sand suction dredgers, weed-cutting boat, water cleaning boats, sludge solidification equipment, sand

washing equipment, mineral processing equipment, etc. Our company has 20 years of professional

equipment production experience, passed the ISO9001 quality system certification, and is a member

of China Dredging association.
