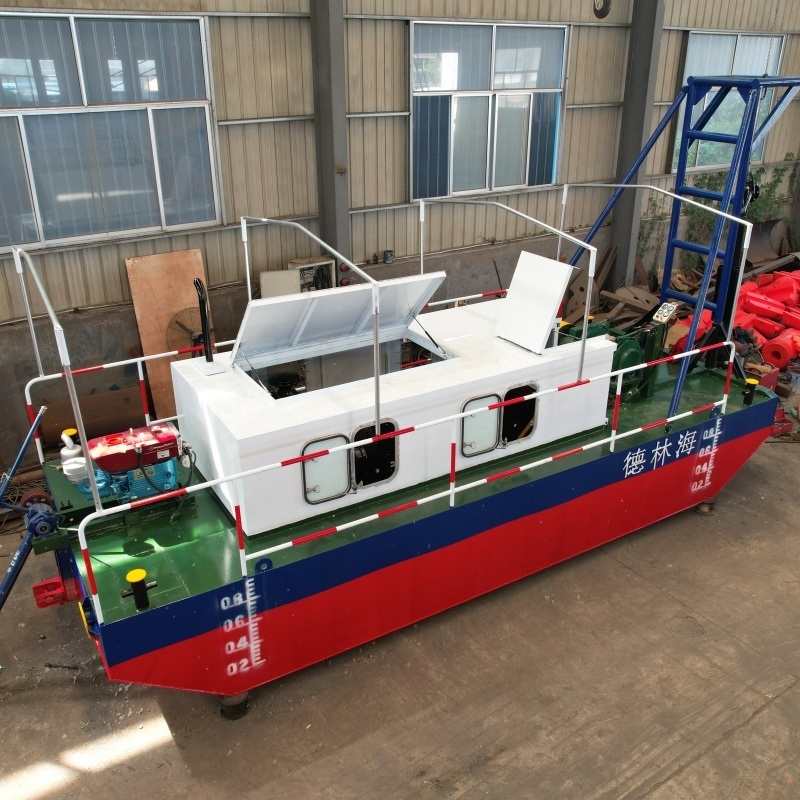

Small Jet Sand Dredger Boat With 100 M3/H Soild Capacity

Name: Small Jet Sand Dredger Boat With 100 M3/H Soild Capacity
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: ys-8 inch
Price: 66000 USD
Availability: InStock

Productdetails

Plaats van herkomst: CHINA

Merknaam: yongsheng

Modelnummer: ys-8 inch

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1

Prijs: 66000usd/piece

Verpakking Details: Container

Levertijd: 30 werkdagen

Betalingscondities: T/t, l/c

Levering vermogen: 100 stuk/jaar

Krijg Beste Prijs

Productdetails

Productomschrijving

Productdetails

Markeren:

aangepast:	aangepast	Voorwaarde:	Nieuw
Garantie:	1 jaar	Waterstroom:	500m3/h
Vaste capaciteit:	80-100 m3/h	Max.dredging diepte 45 °:	8m
Ontladingsafstand:	500 m	Maat:	14m4,5m1,2m
Hoofdmotor:	176kw	Consumptie:	40 l/uur
Sollicitatie:	zandzuiging	Werkplaats:	River Lake Sea Canal

aangepast:	aangepast
Voorwaarde:	Nieuw
Garantie:	1 jaar
Waterstroom:	500m3/h
Vaste capaciteit:	80-100 m3/h
Max.dredging diepte 45 °:	8m
Ontladingsafstand:	500 m
Maat:	14m4,5m1,2m
Hoofdmotor:	176kw
Consumptie:	40 l/uur
Sollicitatie:	zandzuiging
Werkplaats:	River Lake Sea Canal

Productomschrijving

Small Jet Sand Dredger Boat  With 100 M3/H  Soild Capacity

 This dredger is designed and manufactured according to the requirements of river sand mining

conditions.  Working principle: First, the water gun uses high-pressure water through the water

 jet head to flush the underwater ore to form a reverse fluid. The fluid enters the pump body

through the suction sand head under the action of the pump and obtains the kinetic energy of

the diesel engine and is transported to the designated location through the discharge pipe.

Product Paramenters:

Model	Soild capacity	Water flow	Dredging depth	Discharge distance	Main engine	Auxiliary engine	Total consumption	size(m)
6inch	40-50 m3/h	250 m3/h	6M	500M	120 KW		18L/H	103.81.6
8inch	80-100 m3/h	500 m3/h	8M	500M	176 KW	60KW	40L/H	144.51.2
10inch	150-180 m3/h	900 m3/h	10M	800M	294 KW	88KW	60L/H	1751.2
12inch	200-250 m3/h	1400 m3/h	10M	1000M	456 KW	110KW	80L/H	2061.5
14inch	300-400 m3/h	2000 m3/h	12M	1500M	735 KW	120KW	120L/H	246.61.6
16inch	400-500 m3/h	2600 m3/h	14M	1500M	882 KW	258KW	150L/H	247.21.8
18inch	500-600 m3/h	3000 m3/h	14M	1500M	1103 KW	456KW	220L/H	247.62.0
20inch	600-700 m3/h	3800 m3/h	14M	1500M	1250 KW	456KW	240L/H	267.62.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added. The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

sand suction dredging machine consists of a dredge body, high-efficiency wear-resistant marine

sand pump, high-pressure water pump, famous brand diesel engine, and discharge system. Our

New Sand Mining Machine features an integrated design, high efficiency, good wear resistance,

flexible operation, and energy saving in the delivery of solid particles. Our New Sand Mining Machine

is the most economical New Sand Mining Machine for loose fine sand in the water bottom. We

can customize various small and medium jet suction dredgers for your demands.

Small Jet Sand Dredger Boat With 100 M3/H Soild Capacity 0

Small Jet Sand Dredger Boat With 100 M3/H Soild Capacity 1

Small Jet Sand Dredger Boat With 100 M3/H Soild Capacity 2

1. Powerful power and excellent dredging capability: Our dredger suction dredgers are equipped

with high-power engines, can work efficiently in various complex environments, have outstanding

dredging capabilities, and are suitable for different engineering needs.
2. Efficient dredging and precise transportation: The equipment integrates advanced dredging and

transportation technologies, which can quickly and accurately complete silt cleaning and transportation

tasks, and improve engineering efficiency.
3. Customized services: We provide customized services, and carry out personalized design and

modification of dredger suction dredgers according to the specific needs of customers to ensure that

various special requirements are met.
4. Quality assurance: All exported hydraulic dredger suction dredgers undergo strict quality inspections

to ensure first-class product quality, so that customers have no worries.
5. Thoughtful service: From pre-sales consultation to after-sales service, our professional team always

provides customers with all-round support to ensure the smooth progress of the project.
